When one is looking to develop a testing room, ITS offers a wide range of aeroacoustic wind tunnels for many applications of soundproofing / acoustic insulation related to the construction of aerodynamic wind tunnels.

ITS offers powerful solutions at a reasonable cost in response to all needs in the matter of acoustic measurement rooms (construction or retrofit) by the means of equipment whose quality of design and of execution meets the highest requirement level in this area in the context of R & D for acoustic comfort.

Theaeroacoustic wind tunnels offered by ITS allow to obtain free field conditions (when applicable: on a reflecting floor) meeting the requirements of standard NF EN ISO 3745 Acoustics - Determination of sound power levels and sound energy levels of noise sources using sound pressure - Precision methods for anechoic rooms and hemi-anechoic rooms.

They can allways be disinstalled for a reinstallation in a different place.

They are usually made of modular elements whith a geometry defined for each project, covered by a cloth (eventually: with a painted metallic perforated protection) with an insulation (filling) made of mineral fiber or of foam or of polyester fiber (walls, roof and if applicable: floor) that equip also (by the means of mobile sets) the places of acoustic doors allowing to access to the measurement room and the places of acoustic windows allowing the visibility from a control room.Some of those elements may have a sound absorption coefficient for normal incidence αo close from 100 % from 50 Hz (higher performance related to a lower cut off frequency can be obtained by the means of special constructions).

Regarding products and construction systems proposed by ITS their performance is measured in laboratory according to current standards:

  • their sound absorption coefficient according to the standards NF EN ISO 354 Acoustics - Measurement of sound absorption in a reverberation room and NF EN ISO 11654 Sound absorbers for use in buildings - Rating of sound absorption
  • their sound absorption coefficient for normal incidence according to the standard NF EN ISO 10534-1 Acoustics - Determination of sound absorption coefficient and impedance in impedance tubes - Part 1: Method using standing wave ratio

The aeroacoustic wind tunnels proposed by ITS can be delivered as a kit ready to assemble with assembly instructions or be installed turnkey.

A guarantee of acoustic performance on site is issued for each installation of aeroacoustic wind tunnels .

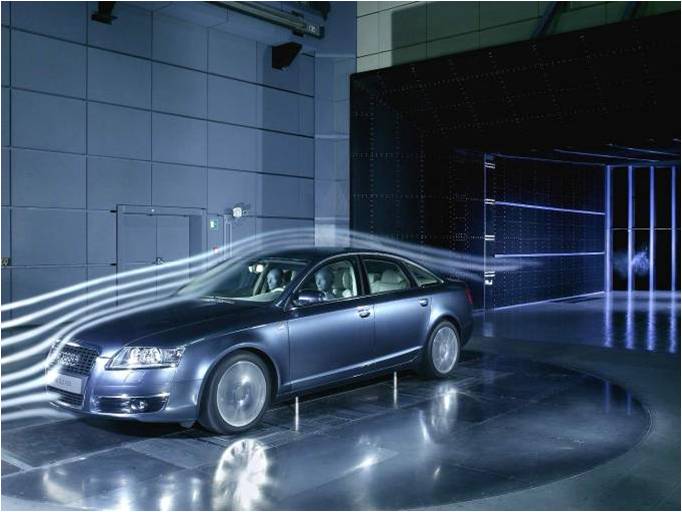

absorbing lining
based on compact absorbers
for the testing room of an aeroacoustic wind tunnel
(automotive industry)

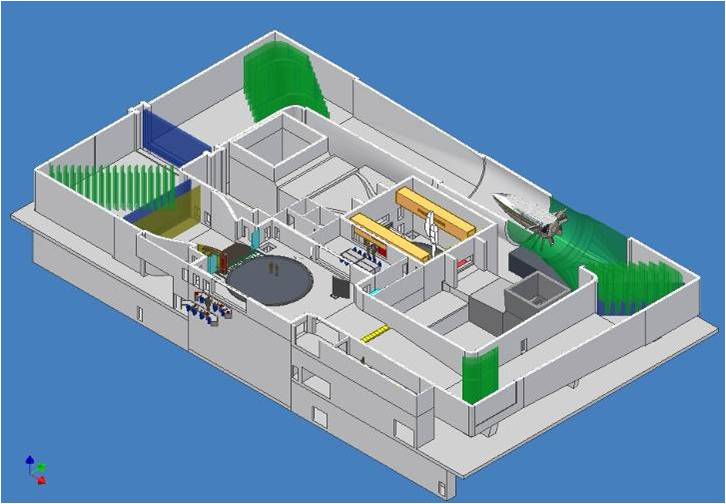

model
of an aeroacoustic
wind tunnel
(automotive industry)

The aeroacoustic wind tunnels offered by ITS are robust constructions with quality finishes ensuring a high durability.

They are notably used in order to equip acoustics R&D laboratories (in all fields of activity), for universities,engineering schools, research institutions.

.


The
absorbing treatment for aeroacoustic wind tunnelsoffered by ITS are a choice acoustic lining as soon as it comes to quantify (in a laboratory) the noise emissions of noisy equiment or to develop equipments sufficiently silenced  or having a particular sound design, that make use of specific testing rooms as for the automotive sector (anechoic rroms are called anechoid rooms sometimes).

Go to other pages of this website presenting the sub sets constituting this equipment
Absorbing lining for acoustic measurement rooms
Download a brochure related to this equipment


See the brochure of FAIST (ITS is practicing the brokerage for the supply / installation of soundproofing equipement)


See the frequently asked questions related to this equipment
See the frequently asked questions related to this equipment
end faq

Aeroacoustic wind tunnels: all equipment that one can source thanks to Isolation Technologie Services (ITS).

Note: ITS also offers acoustical insulators and soundproofing products (materials and construction systems) for acoustic measurement rooms (building envelope) like anechoic chambers or aero-acoustic wind tunnels.

Go to other pages of this website presenting the sub sets constituting this related equipments
Metallic acoustic door set
Metallic acoustic insulation panel without any absorbing face
Metallic acoustic window set
end faq

ITS offers aeroacoustic wind tunnel for sound and noise measurements in free field conditions accounting wind speed for acoustic research & development.
